OXAN
OXAN
OXAN - Image 3
OXAN - Image 4
OXAN - Image 5
OXAN - Image 6
OXAN - Image 7
OXAN - Image 8
OXAN - Image 9
OXAN - Image 10
OXAN - Image 11
OXAN

OXAN

Description

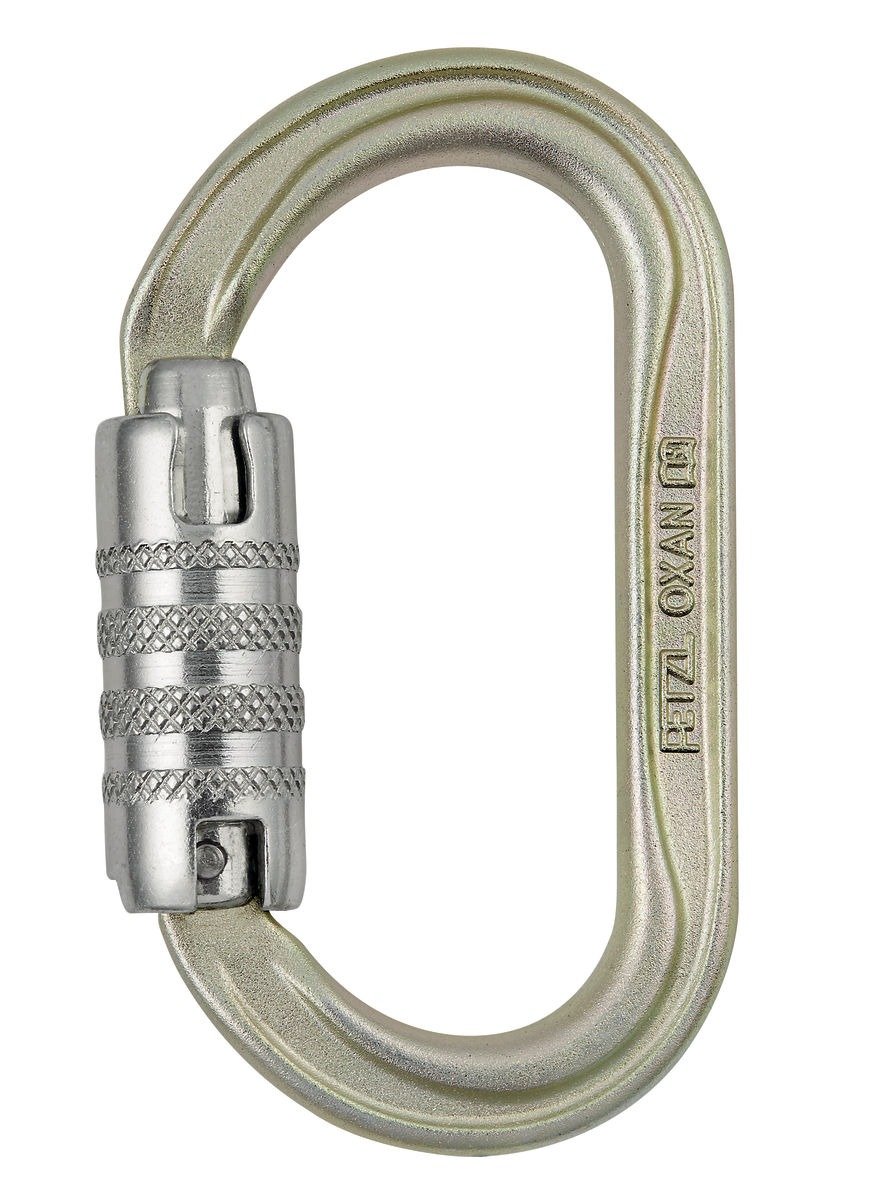

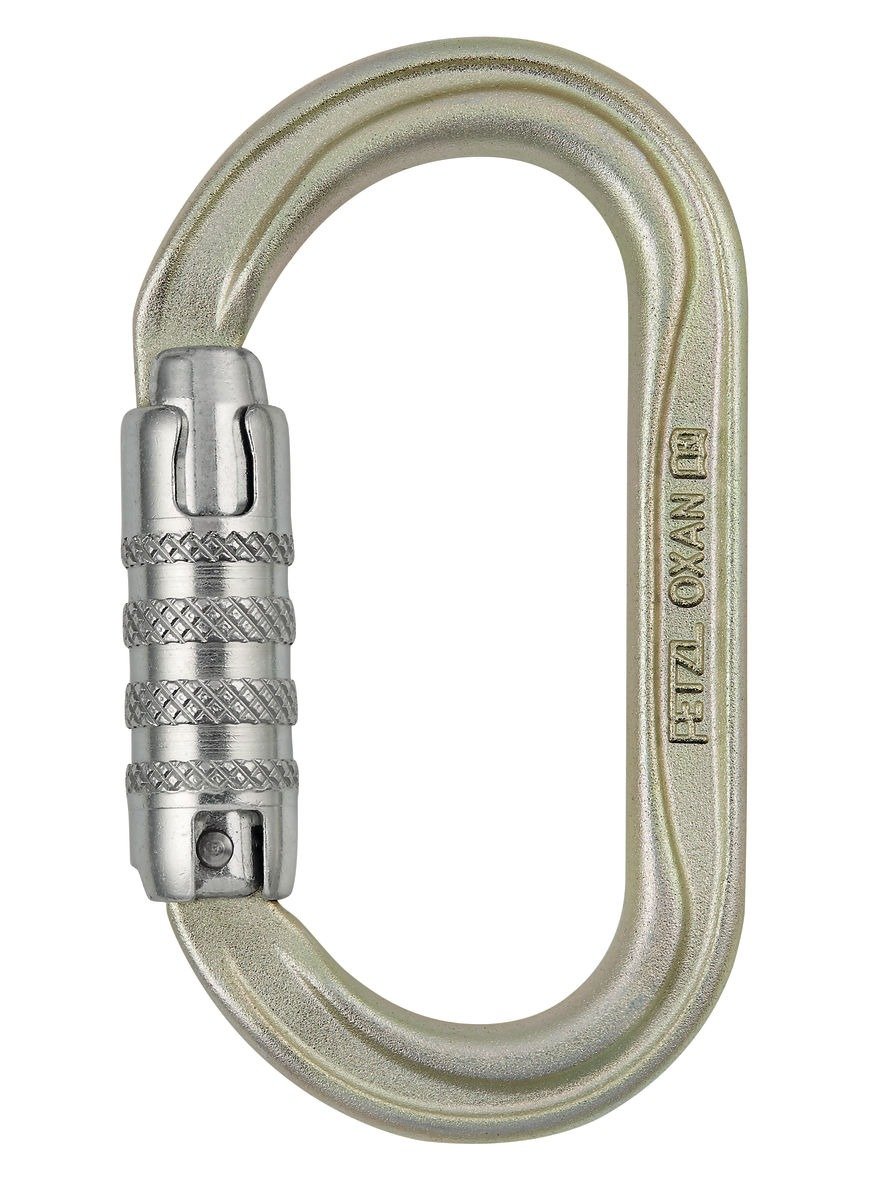

  • High-strength steel carabiner for use in harsh environments, particularly suitable for setting up anchors or for connecting to metal structures
  • Oval symmetrical shape allows optimal positioning of the carabiner

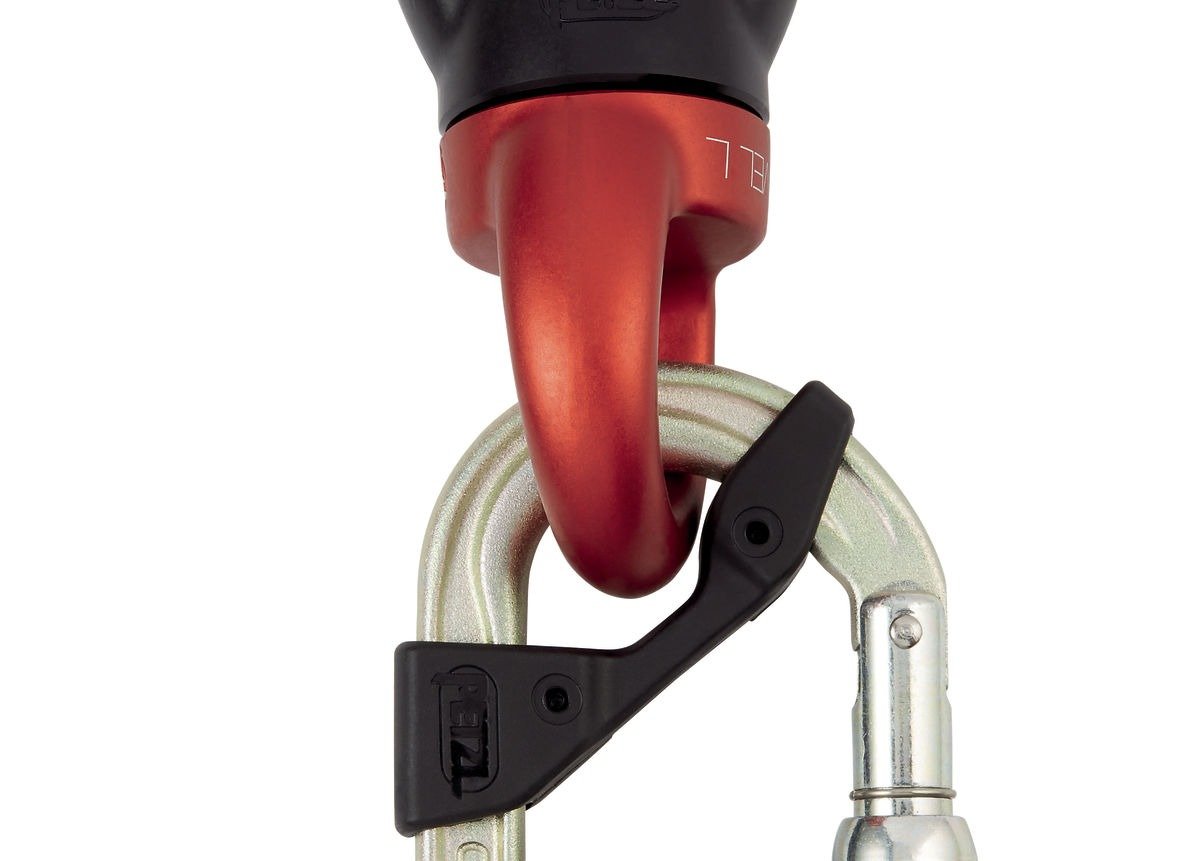

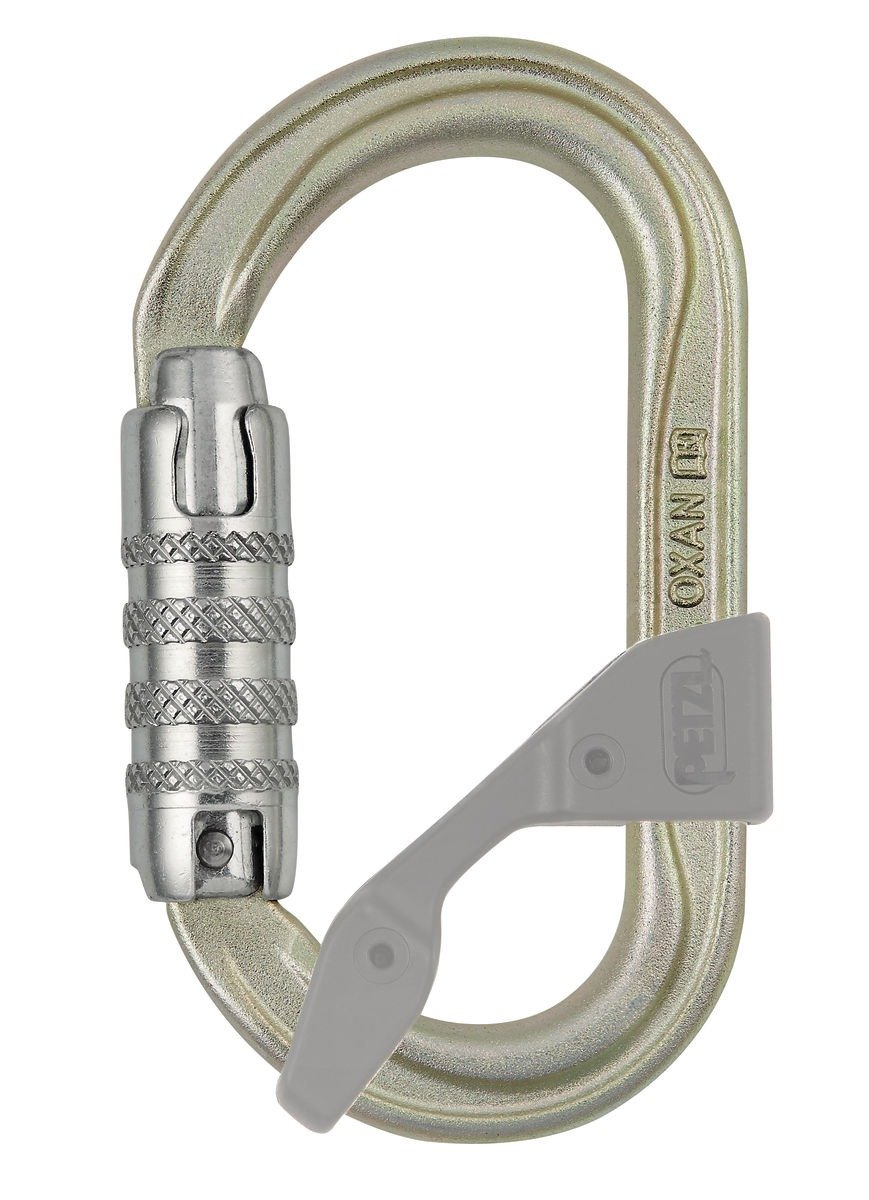

  • May be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis, to keep it integrated with the device, and to limit the risk of it flipping
  • Easier handling:

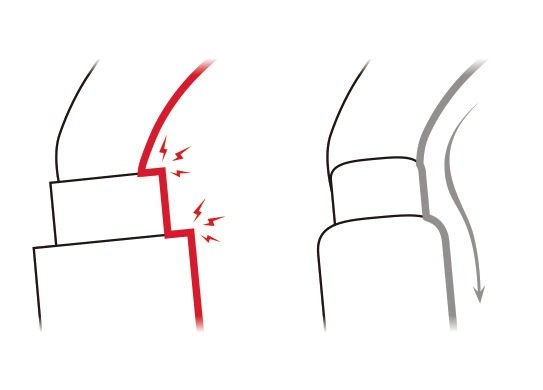

    – fluid interior design limits the risk of having a catch point and facilitates rotation of the carabiner

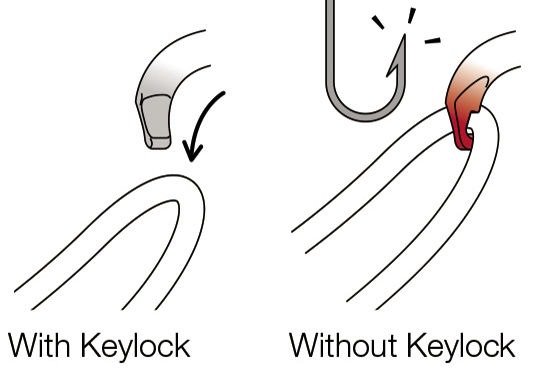

    – Keylock system to avoid any involuntary snagging of the carabiner
  • H cross-section:
    – ensures an optimal strength/weight ratio
    – protects markings from abrasion
  • Two locking systems available:
    – TRIACT-LOCK: automatic locking with triple-action gate opening
    – SCREW-LOCK: the manual screw-lock with red band provides a visual warning when the carabiner is unlocked
  • Available in European or international versions
  • Also available in black

Specifications

  • Material(s): steel

References

References M72A TL M72A SL M72A TLA M72A TLN M72A SLN
Locking system TRIACT-LOCK SCREW-LOCK TRIACT-LOCK TRIACT-LOCK SCREW-LOCK
Certification(s) CE EN 362, NFPA 2500 Technical Use, EAC, GB/T 23469 : B, XF 494 : FZL-G-Q, compliant with the Japanese standard for fall protection CE EN 362, NFPA 2500 Technical Use, EAC, GB/T 23469 : B, XF 494 : FZL-G-Q, compliant with the Japanese standard for fall protection CE EN 362, ANSI Z359.12, NFPA 2500 Technical Use, CSA Z259.12, EAC, compliant with the Japanese standard for fall protection CE EN 362, ANSI Z359.12, NFPA 2500 Technical Use, CSA Z259.12, EAC, GB/T 23469 : B, XF 494 : FZL-G-Q, compliant with the Japanese standard for fall protection CE EN 362, NFPA 2500 Technical Use, EAC, GB/T 23469 : B, XF 494 : FZL-G-Q, compliant with the Japanese standard for fall protection
Color(s) gold gold gold black black
Major axis strength 38 kN 38 kN 38 kN 38 kN 38 kN
Minor axis strength 16 kN 16 kN 16 kN 16 kN 16 kN
Open gate strength 15 kN 15 kN 15 kN 15 kN 15 kN
Gate opening 22 mm 22 mm 20 mm 20 mm 22 mm
Weight 195 g 185 g 230 g 230 g 185 g
Guarantee 3 years 3 years 3 years 3 years 3 years
Inner Pack Count 1 1 1 1 1

Inspection



PPE inspection procedure

 Download the PDF – 2.86 MB

PPE checklist

Download the PDF – 0.21 MB

Easily Manage and Inspect Your PPE

  • Add a Petzl product by simply scanning its datamatrix: all information related to the product will automatically populate
  • Easily import and export your existing PPE data
  • View product history from the date of manufacture

Learn More
